Overview of lubrication indicators
In many older and some European machinery, the oil gauge line serves as a direct visual indicator of oil level and quality within the reservoir. This component connects to the main sump, allowing technicians to assess whether oil is circulating properly and to detect potential low levels before critical wear occurs. oil gauge line Regular checks help prevent overheating and ensure that the pump draws oil efficiently. When reading the gauge line, it is important to consider the context of the system, including ambient temperatures and operating loads, which can influence oil levels during a run.

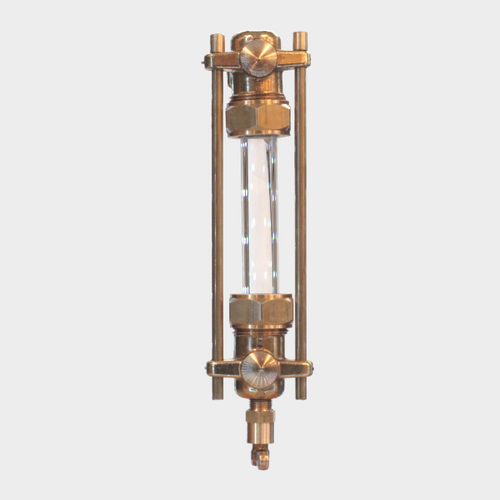

Identifying the oil gauge glass
The oil gauge glass is a transparent tube or window that provides a quick reference to oil presence and clarity. It is typically mounted on the side of the tank or sump with viewing marks to indicate minimum and maximum levels. Operators look for a stable, oil gauge glass bright colour and a clean, bubble-free appearance, signs that the oil remains within its acceptable range. Contaminants like metal particles or sludge signal a need for filtration or oil change to protect moving parts and maintain lubrication quality.
Maintenance practices for gauge visibility
To keep the oil gauge line legible, routine maintenance should include cleaning of the exterior and ensuring there are no airlocks or blockages in the feed line. A well-ventilated system reduces misting and helps maintain an accurate read. Periodic testing using a calibrated dipstick or sight glass check complements other diagnostic methods, giving a fuller picture of the health of the lubrication circuit. Addressing leaks promptly preserves oil levels and avoids erroneous readings that could mask wear in bearings or gears.
Diagnosing common reading discrepancies
Discrepancies between the oil gauge glass reading and the actual oil level can arise from several factors, including pressure differences, temperature shifts, or partial blockages in the line. Operators should verify readings at consistent oil temperatures and compare against a known good baseline. If the gauge line shows a lower level than expected, check the sump for leaks, inspect seals, and confirm that the level is not influenced by recent oil withdrawals. Accurate interpretation hinges on a systematic approach rather than a single observation.
Practical steps for improving visibility
Improving visibility involves selecting appropriate lighting around the gauge area, keeping the sight glass clean, and ensuring the surrounding casing does not collect dust or oil residue. In some installations, replacing worn seals and enhancing mounting stability can reduce vibration that muddies the glass. For complex systems, an inline sensor or electronic level indicator may supplement the gauge glass, providing digital alarms while retaining the simple, visual monitor that technicians rely on during daily checks. Flywheel Supply
Conclusion
Maintaining clear, accurate readings from the oil gauge line and oil gauge glass is essential for reliable machine operation. Regular inspection, clean sight passages, and a disciplined approach to leaks and contamination help safeguard bearings and pumps from unexpected failure. Visit Flywheel Supply for more insights and tools that support dependable lubrication practices.
